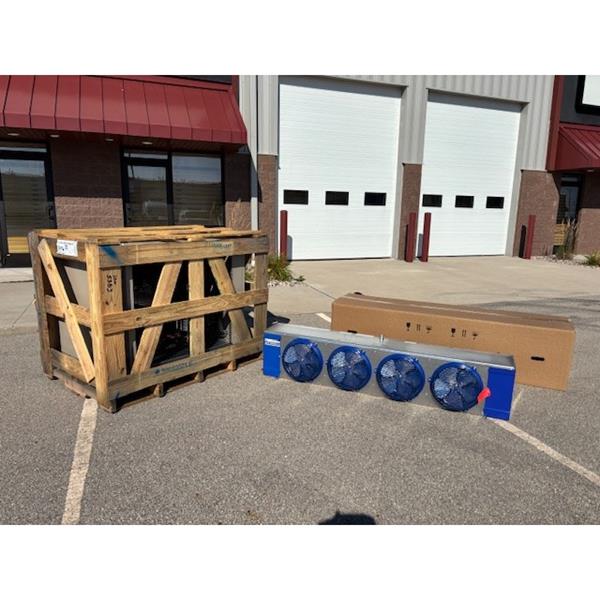

10 HP Chandler Low Temp System (230v)

Features:

New 10 hp low temp system to include :

(1) new 10 hp Chandler mfg. outdoor condensing unit.  Unit model: HCH0100LCBCZA0300 with Copeland scroll compressor, awef #3.15.  208-230 volt, 3 phase, r-449a.

Options included: defrost timer, fan/heater contactor.

Rating: 36,150 btuh @ -15 degree sst/+95 degree ambient.

 (2) new Chandler mfg. low profile freezer evaporators.  Model: HEL0170BS6EMAB0000, electric defrost, 2,741 cfm.4 fans, 208-230 volt, 1 phase.

Options included: 2 speed ec motors

Approx dim: 16” deep x 78” wide x 18” high, awef #4.10 (#9.00 for cooler application)

Rating: 18,258 btuh @ 10 degree td

Notes: system sized for -5 degree room temp, -15 degree sst, +95 degree ambient and operation on refrigerant r-449a. Evaporator txv not included.
