New 15 HP Low Temp System, 3 Phase 208-230 Volt
Complete 15 HP low-temperature refrigeration system built
for walk-in freezers

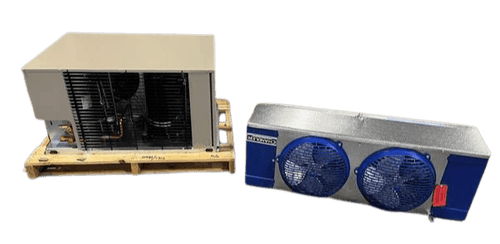

This 15 HP low-temperature refrigeration system pairs
a Chandler outdoor air-cooled condensing unit with a Krack low-profile
electric-defrost evaporator for dependable walk-in freezer applications. The
matched system combines a Copeland Scroll compressor with variable speed
evaporator motors to provide efficient, reliable cooling for low-temperature
cold storage.
Condensing Unit
- 1- New 15 HP Chandler
outdoor, air-cooled condensing unit
- Unit model: HCH0150LCBCDA0303 with
Copeland scroll compressor
- 208-230 volt, 3 phase,
R-449A, AWEF #3.15
- Approx dim: 37” deep x 52”
wide x 40” high, net wgt: 671 Ibs
- Options included:
replaceable core suction filter, E-4 defrost kit (timer with fan/heater
contactors), suction accumulator
- Rating: 45,240 BTUH @ -15°
SST/+95° ambient
Evaporator
- 1 – New Krack low profile
evaporator
- Model: SMD15E-0556RVKK,
electric defrost
- 1 - fans,230 volt, 3 phase
- Options included: variable
EC motors
- Approx dim: 39” deep x 135”
wide x 41” high, est wgt 505 Ibs
- Rating: 50,040 BTUH @ 10°
T.D.
System spec’ed for -5° freezer
Get it right. Call our knowledgeable US-based sales staff for
assistance at (888) 661-0871.
- Phase - Voltage
- 3 phase 208-230 volt
- Description
- New 15 HP Chandler-Krack Low Temp Blast System, 3 phase 208-230 volt
- Item Condition
- New
- BTUH Capacity
- Condensing Unit: 45,240 BTUH @ -15° SST/+95° ambient; Evaporator: 50,040 BTUH @ 10° T.D.
- Manufacturer
- Condensing Unit: Chandler; Evaporator: Krack
- Model #
- Condensing Unit: HCH0150LCBCDA0303; Evaporator: SMD15E-0556RVKK
- Dimensions (W x D x H)
- Condensing Unit: 37” x 52” x 40”; Evaporator: 39” x 135” x 41”
- Warranty
- New units include factory warranty
- Dimensions
- Condensing Unit: 37” x 52” x 40”; Evaporator: 39” x 135” x 41”
