New 10 HP Krack Low Temp System, 3 phase 460 volt

New 10 HP Low Temp System, 3 Phase, 460 Volt

New 10 HP low-temperature refrigeration system built for walk-in/drive-in freezers

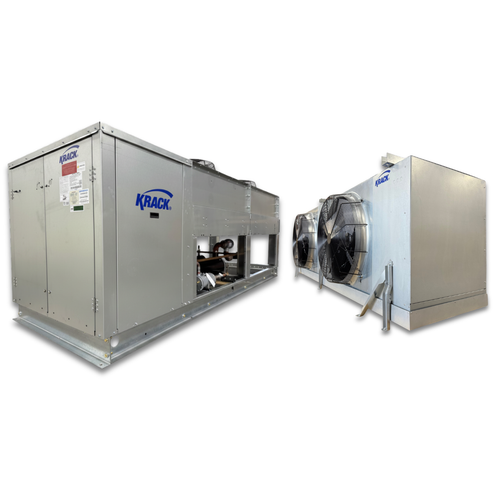

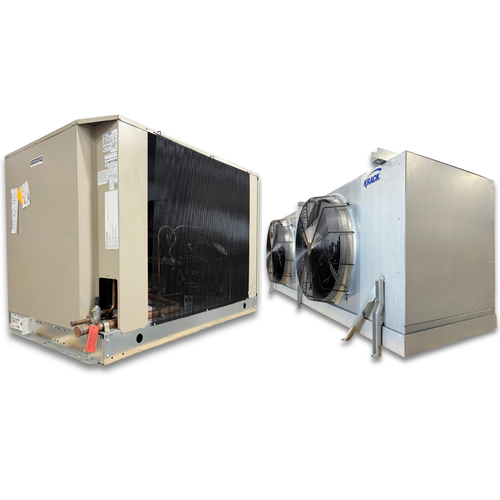

This 10 HP low-temperature refrigeration system pairs a Krack outdoor air-cooled condensing unit with a matching high-profile electric-defrost evaporator for dependable walk-in/drive-in freezer applications. The matched system combines a Copeland Scroll compressor with variable speed EC evaporator motors to provide efficient, reliable cooling for low-temperature cold storage.

Condensing Unit

·         1 - New 10 HP Krack outdoor, air-cooled condensing unit.

·         Unit model: HDSZ-1000LRM with Copeland Scroll compressor.

·         460 Volt, 3 Phase.

·         Refrigerant: R-449A, AWEF #3.15.

·         Approx. dim: 35”D x 88”L x 42”H, ship wgt: 1,250 Ibs.

·         Refrigerant: Replaceable core suction filter, E-3 defrost kit (timer with fan/heater contactors), and suction accumulator.

·         Rating: 39,560 BTUH @ -15° SST/+95° ambient.

Evaporator

·         1 - New Krack high profile evaporator.

·         Unit model: SMD14E-0384RVMM, electric defrost, 9,690 CFM.

·         460 Volt, 3 Phase, 1-30" fans.

·         Options included: Variable speed EC motors.

·         Approx. dim: 39”D x 77”L x 41”H, ship wgt: 440 Ibs, AWEF #4.15.

·         Rating: 38,637 BTUH @ 10° T.D./R-449A.

System spec’ed for -5° freezer on R-449A.

Get it right. Call our knowledgeable US-based sales staff for assistance at (888) 661-0871.
