Size: 25 HP
Features:
New 25 hp medium temp system to include:

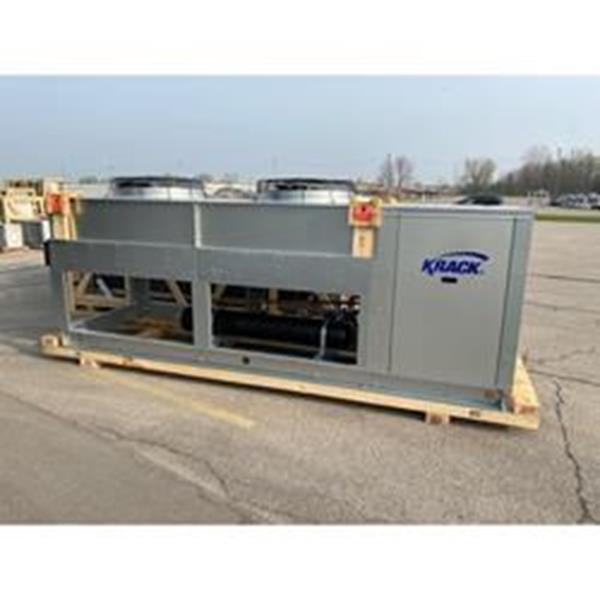

(1) New 25 hp Krack outdoor condensing unit. Unit model CSD-0250MRM with copeland discus compressor, awef #7.6. 460 volt, 3 phase, r-449a.
Options included: air defrost timer, pressure fan cycling, and replaceable core suction filter.
Rating: 201,800 btuh @ +25 degree sst
(3) New Krack medium profile cooler evaporators with variable speed ec motors. Model MSD36A-712-RVB, air defrost, 11,040 cfm. 3-20” fans, 115 volt, 1 phase. Approx dim: 27” deep x 129” wide x 27” high, awef #9.00. Rating: 71,180 btuh @ 10 degree td.
Notes: system sized for +34 degree room temp, +25 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and evaporator txvs not included.
- Voltage/Phase
- 3 Ph, 460 V
- Warranty
- 1 YR + 4 YR Extended
