3.5 HP Heatcraft Low Temp System

Size: 3.5 HP

Condition: New

Features:

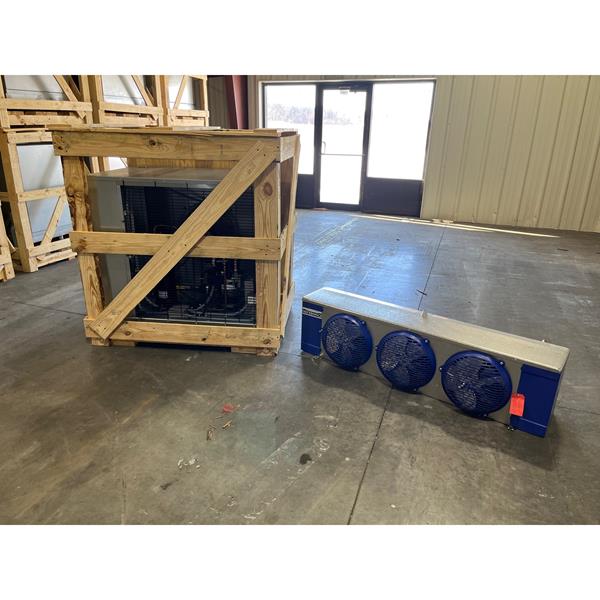

New 3.5 hp low temp system to include:

(1) new 3.5 hp chandler mnfg outdoor condensing unit with electric defrost timer.

Unit mod: hch0035lbacza0200 with copeland “scroll” compressor, awef #3.15.  208-230 volt, 1 phase, r-449a.  Rating: 12,580 btuh @ -15 degree sst.

(1) new chandler mnfg low profile freezer evaporator with “2 speed ec” motors.  Mod: hel0130bs6emab0000, electric defrost, 1,922 cfm.  3 fans, 208/230 volt, 1 phase.

Approx dim: 16” deep x 62” wide x 18” high, awef #4.06 (#9.00 for cooler application).  Rating: 13,770 btuh @ 10 degree td.

Note: system sized for -6 degree room temp, -15 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and txv not included.

Specifications:

Voltage/Phase: 1 Ph, 208-230 V
Warranty: 1 Year factory
