20' x 40' x 16'5"H Drive-In Freezer
Large-capacity drive-in freezer with 5" insulated
modular panels
This 20' x 40' drive-in freezer is designed for
large-scale frozen storage applications requiring convenient access and

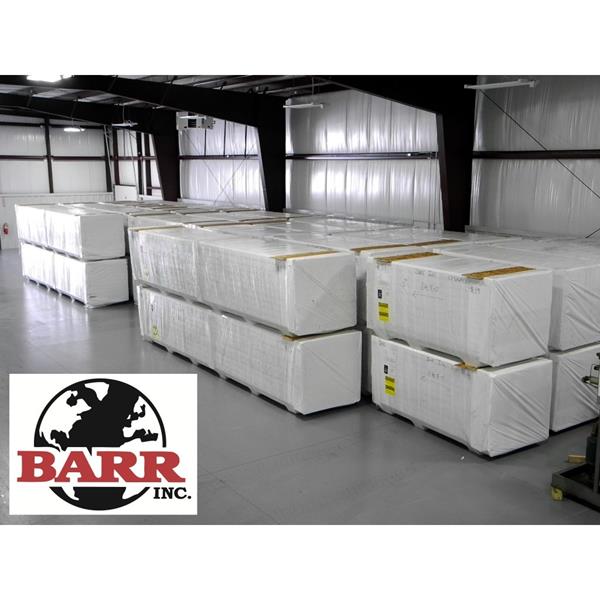

substantial low-temperature storage space. Its modular tongue-and-groove panels
feature 5" thick, non-CFC foamed-in-place polyisocyanurate insulation with
an R-value of 39, while the included installation trim package provides the

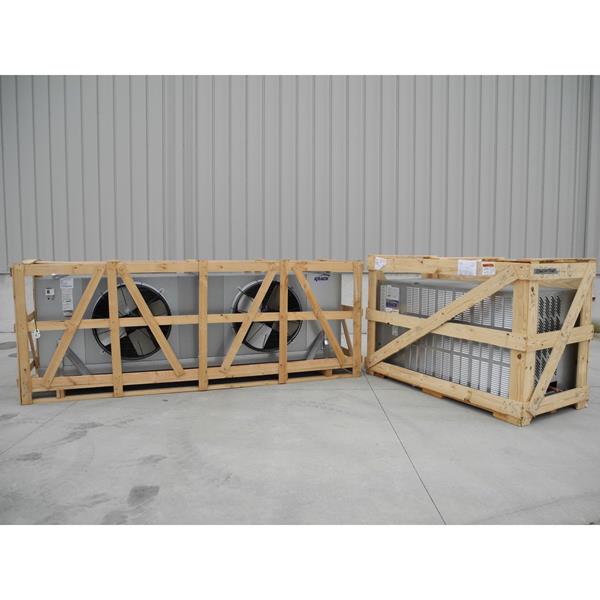

essential components needed for panel installation. System to include a 10 HP
outdoor condensing unit and matching electric defrost evaporator (3 Phase,
208/230V, R-449A).

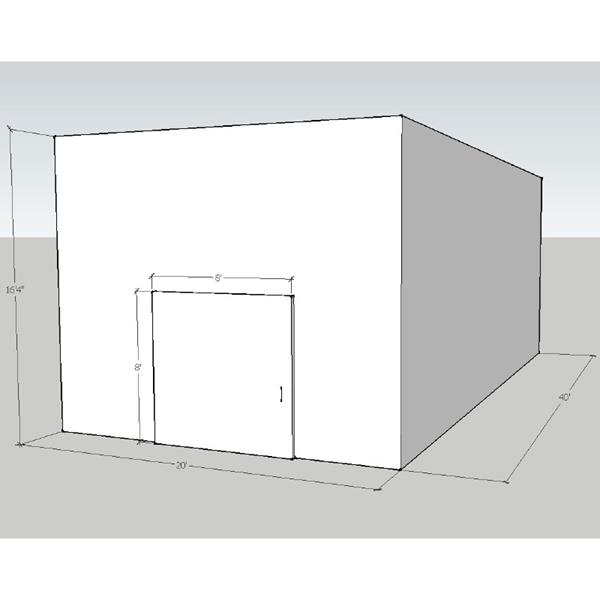

- 20' x
40' x 16'5"H commercial drive-in freezer.
- Modular
tongue-and-groove cold storage panel construction.
- 5"
thick non-CFC foamed-in-place polyisocyanurate insulation.
- R-value:
39
- Stucco
white interior and exterior finish.
- USDA
& FM Approved.
- Includes
(1) 8’ x 8’ manual sliding door with vinyl strip curtain.
- Install
trim package for panels included (base angle, corner trim, caulking,
screws, vapor barrier, ceiling suspension kit(s) etc.
- Refrigeration
sized for 0° to -5° freezer storage (no warm entering product etc).
A2L,3/460V, PRO3 self-contained, and oversized systems
available upon request.
Get it right. Call our
knowledgeable US-based sales staff for assistance at (888) 661-0871.
- Description
- 20' x 40' x 16'5"H Drive-In Freezer
