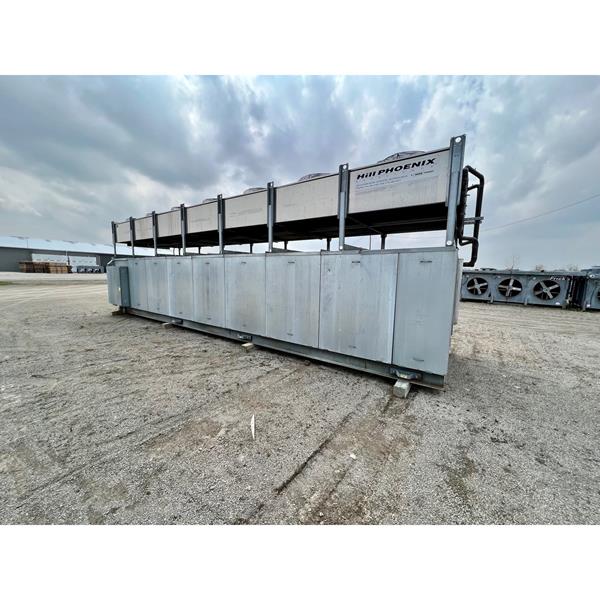

112.5 HP Dual Temperature Compressor Rack & Remote Condenser Package
Size: 112.5 HP
Model: Paratemp 58017
This item is out of stock
112.5 HP Compressor Rack with (2) suction groups includes (5) Copeland Discus semi-hermetic compressors on the medium temp suction group and (5) Copeland Discus semi-hermetic compressors on the low temp suction group. Condenser mounted on top of compressor penthouse; penthouse includes compressors, oil control system, accumulators, liquid receiver, electrical panel, and water reclaim with related electrical all mounted on a common steel frame with outdoor enclosure. Valve bank and/or valving for individual circuits not included.
- Equipment package in very good condition.
- Low Temp Compressors: Copeland Discus 15HP, 10HP, 9HP, 6HP, and 3HP
- Medium Temp Compressors: Copeland Discus 25HP, 20HP, 12HP, 7.5HP, and 5HP
- Condenser: Bohn BNX-D14-A104 (14-fan vertical air flow, 2 circuits) rated at 1,020,180 BTUH @ 11.4 degree TD
- 3 Phase, 460v.
- Capacity: 613,200 BTUH @ +20 Degree SST & 275,100 BTUH @ -25 Degree SST (R-404A).
- Approximate weight: 16,100 lbs.
- Approximate dimensions: 7'4"W, 32'2"L, 9'10"H
In stock, ready to ship!
|Voltage/Phase:||3 Phase, 460v.|
