25 HP Krack Medium Temp System (230v)

Size: 25 HP

Condition: New

Barr Ready-Ship Item!

Features:

New 25 hp medium temp system to include:

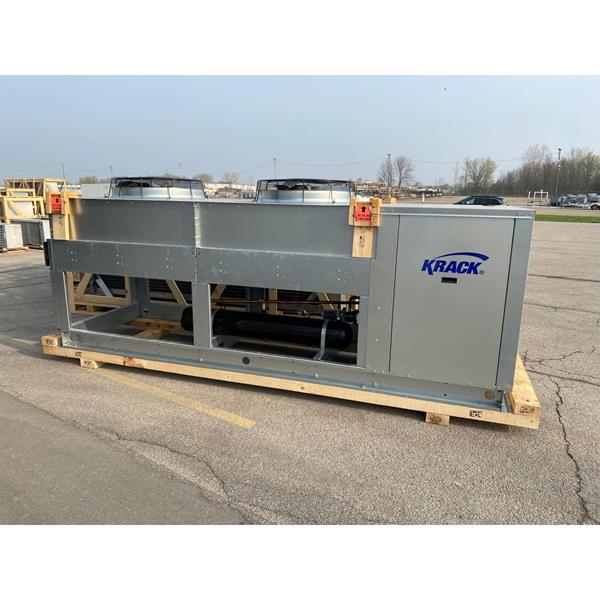

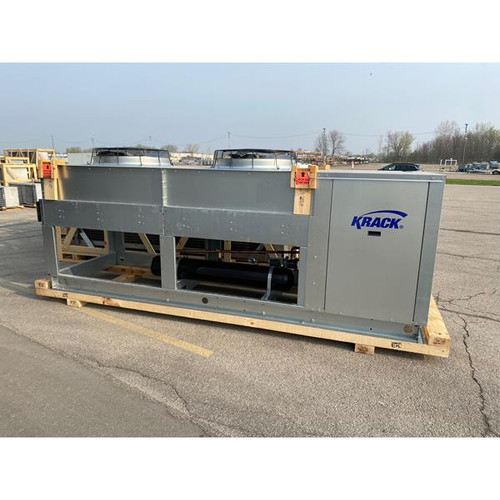

(1) new 25 hp Krack mfg. outdoor condensing unit.  Model CSD-0250MRK with Copeland discus compressor, awef #7.6.  208-230 volt, 3 phase, r-449a.

Options included: air defrost timer, pressure fan cycling, and replaceable core suction filter.

Rating: 201,800 btuh @ +25 degree sst

(2) New Krack medium profile cooler evaporators.  Model MSD46A-0949-RVB, air defrost, 14,720 cfm. 4-20” fans, 115 volt, 1 phase.

Options included: variable speed ec motors.

Approx dimimensions: 27” deep x 168” wide x 27” high, awef #9.00.

Rating: 94,900 btuh @ 10 degree td.

Notes: system sized for +35 degree room temp, +25 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and evaporator txvs not included.

Specifications:

Voltage/Phase: 3 Ph, 208-230 V
Barr Ready Ship: yes
Warranty: 1 YR + 4 YR Extended
