40' x 40' x 10'4"H Drive-In Cooler
Large-capacity drive-in cooler with 4" insulated modular panels
This 40' x 40' drive-in cooler is designed for large-scale commercial cold storage applications requiring convenient access and substantial refrigerated storage space. Its modular tongue-and-groove panels feature 4" thick, non-CFC foamed-in-place polyisocyanurate insulation, while the included installation trim package provides the essential components needed for panel installation.
- 40' x 40' x 10'4"H commercial drive-in cooler
- Green Span Profiles mnfg (MesaLine panels)
- Modular tongue-and-groove cold storage panel construction
- 4" thick non-CFC foamed-in-place polyisocyanurate insulation
- R-vaule: 31
- Stucco white interior and exterior finish
- USDA & FM Approved

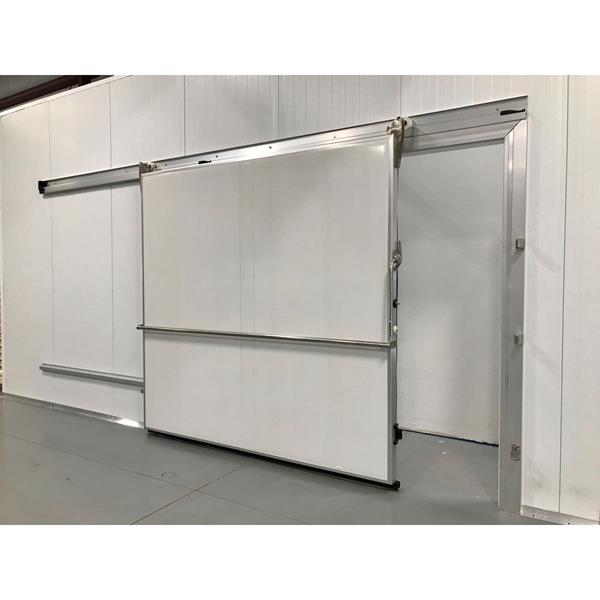

- Includes (1) 8' x 8' sliding door with strip curtain
- Trim package includes base angle, corner trim, caulking, screws, vinyl strip curtain, vapor barrier, ceiling suspension kit(s), and related installation components
- Includes 7.5hp medium temp system to include outdoor condensing unit (1) air defrost evaporator (3/208/230 volt, R-449A)
- Refrigeration sized for holding conditions only; not designed for applications with warm product entering the cooler
Get it right. Call our knowledgeable US-based sales staff for assistance at (888) 661-0871.
- Item Condition
- New
- Dimensions (W x D x H)
- 40' x 40' x 10'4"
- Panel Type
- MesaLine
- Panel Construction
- Tongue-and-Groove
- Panel Thickness
- 4"
- Insulation
- Non-CFC Foamed-in-Place Polyisocyanurate
- R-Value
- R-31
- Door Size (W x H)
- 8' x 8'
- Door Type
- Sliding Door
- Application
- Cooler Storage
- Approvals
- USDA & FM Approved
- Description
- 40' x 40' x 10'4"H Drive-In Cooler
- Refrigeration System
- New 7.5 HP medium-temperature system
- Condensing Unit
- Outdoor condensing unit
- Evaporator
- (1) air-defrost evaporator
- Voltage / Phase
- 208/230V, 3-phase
- Refrigerant
- R-449A
- Panel Specifications
- Green Span MesaLine Panel Specifications
