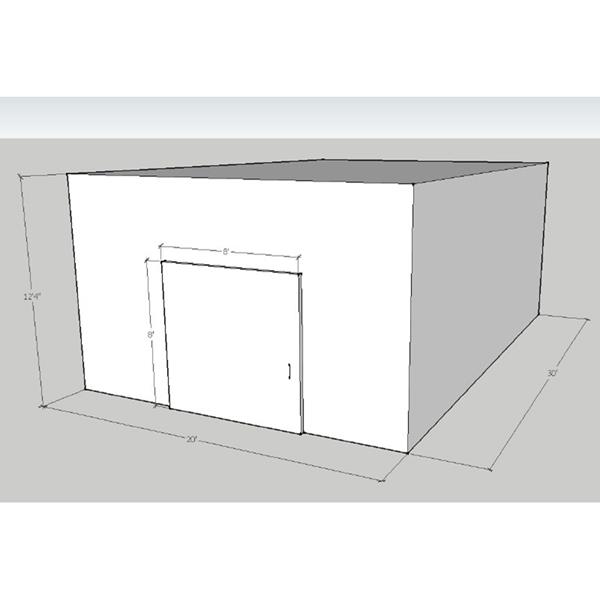

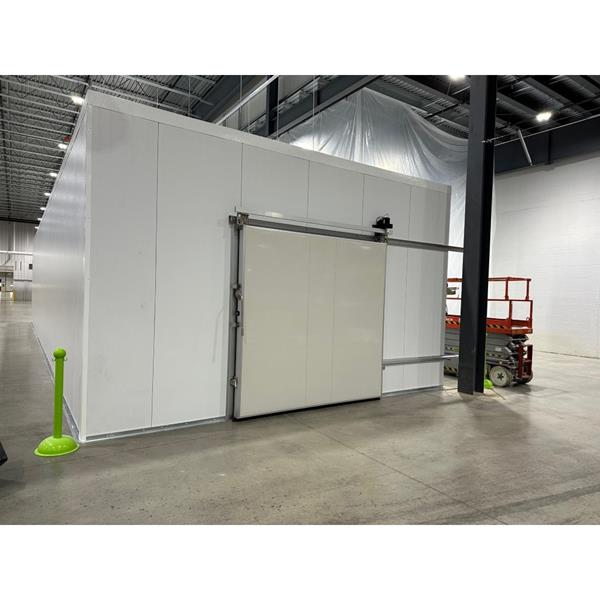

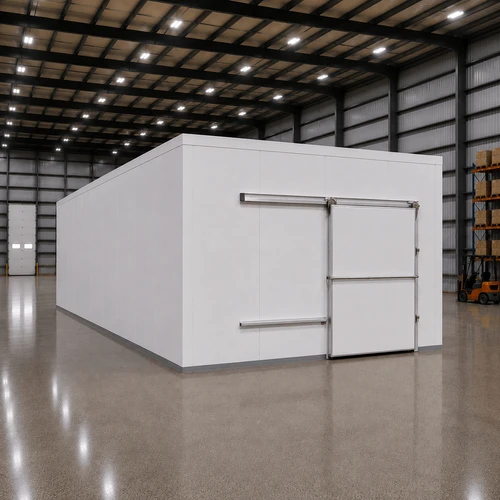

20' x 30' x 12'5"H Drive-In Freezer
Large-capacity drive-in freezer with 5" insulated
modular panels
This 20' x 30' drive-in freezer is designed for large-scale frozen storage applications requiring convenient access and substantial low-temperature storage space. Its modular tongue-and-groove panels feature 5" thick, non-CFC foamed-in-place polyisocyanurate insulation with an R-value of 39, while the included installation trim package provides the essential components needed for panel installation.
- 20' x 30'
x 12'5"H commercial drive-in freezer.
- Green
Span Profiles mnfg (MesaLine panels)
- Modular
tongue-and-groove cold storage panel construction.
- 5"
thick non-CFC foamed-in-place polyisocyanurate insulation.
- R-value:
39
- Stucco
white interior and exterior finish.
- USDA
& FM Approved.
- Unit
includes (1) 8’ x 8’ manual sliding door with vinyl strip curtain.
- Install
trim package for panels included (base angle, corner trim, caulking,
screws, vapor barrier, ceiling suspension kit(s) etc.
- Includes (1) new 10hp low temp system to include outdoor condensing unit with (1) electric defrost evaporator (3/208/230 volt, R-499A)
- Refrigeration sized for storage-holding conditions
(no warm entering product etc).
A2L,3/460V, PRO3 self-contained, and oversized systems
available upon request.
Get it right. Call our knowledgeable US-based sales staff for
assistance at (888) 661-0871.
- Item Condition
- New
- Dimensions (W x D x H)
- 20' x 30' x 12'5"
- Panel Type
- MesaLine
- Panel Construction
- Tongue-and-Groove
- Panel Thickness
- 5"
- Insulation
- Non-CFC Foamed-in-Place Polyisocyanurate
- R-Value
- R-39
- Door Size (W x H)
- 8' x 8'
- Door Type
- Sliding Door
- Application
- Freezer Storage
- Approvals
- USDA & FM Approved
- Description
- 20' x 30' x 12'5"H Drive-In Freezer
