Size: 30 HP
Features:

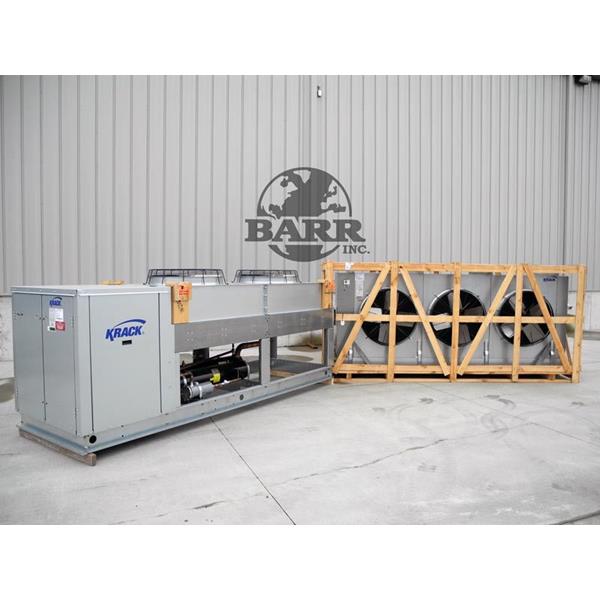

New 30 hp low temp system to include:
(1) New 30 hp Krack outdoor condensing unit. Unit model: CSD-0300LRK with Copeland discus compressor, awef #3.15. 208-230 volt, 3 phase, r-449a.
Options included: e-4 defrost kit (timer with evaporator fan/heater contactors), pressure fan cycling, and replaceable core suction filter.
Rating: 118,200 btuh @ -20 degree sst
(1) New Krack high profile freezer evaporator. Model: smd36e-1225rvkk, electric defrost, 24,900 cfm. 3-30” fans, 230 volt, 3 phase.
Options included: variable speed ec motors.
Approx dim: 39” deep x 135” wide x 53” high, awef #4.15 (#9.00 for cooler).
Rating: 122,500 btuh @ 10 degree td
Notes: system sized for –10 degree room temp, -20 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and evaporator txvs not included.
- Voltage/Phase
- 3 Ph, 208-230 V
- Warranty
- 1 YR + 4 YR Extended
