Size: 15 HP
Features:
New 15 hp low temp system to include:

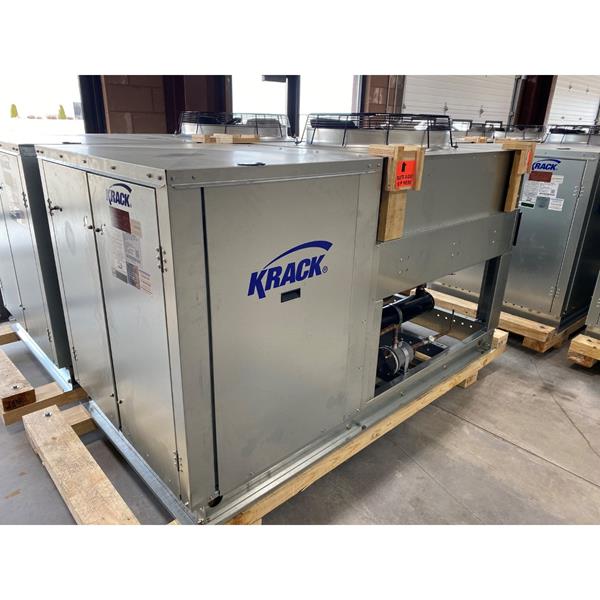

(1) New 15 hp Krack mnfg outdoor condensing unit. Unit model CSD-0150LRK with copeland discus compressor, awef #3.15. 208-230 volt, 3 phase, r-449a.
Options included: e-4 defrost kit (timer with evaporator fan/heater contactors) and replaceable core suction filter.
Rating: 75,300 btuh @ -15 degree sst
1) New Krack mnfg high profile freezer evaporator. Model SMD24E-759RVKK, electric defrost, 19,380 cfm. 2-30” fans, 230 volt, 3 phase.
Options included: variable speed ec motors
Approx dim: 39” deep x 135” wide x 41” high, awef #4.15 (#9.00 for cooler).
Rating: 76,375 btuh @ 10 degree td
Notes: System sized for –5 degree room temp, -15 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and evaporator txv not included.
- Voltage/Phase
- 3 Ph, 208-230 V
- Warranty
- 1 YR + 4 YR Extended
