Size: 10 HP
Features:
New 10 hp low temp system to include:

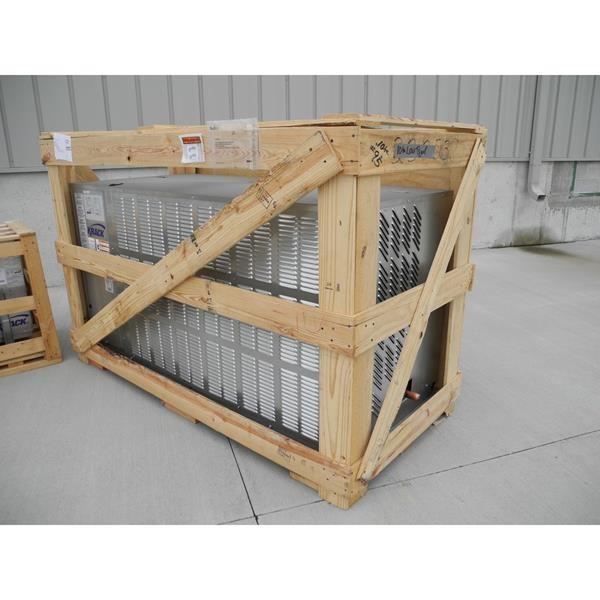

(1) New 10 hp Krack outdoor condensing unit. Unit model HDSZ-1000LRMFF-D with copeland scroll compressor, awef #3.15. 460 volt, 3 phase, r-449a.
Options included: e-3 defrost kit (timer with evaporator fan/heater contactors), suction accumulator, and replaceable core suction filter.
Rating: 39,560 btuh @ -15 degree sst
(1) New Krack mnfg high profile freezer evaporator. Model SMD14E-0384-RVMM, electric defrost, 9690 cfm. 1-30” fan, 460 volt, 3 phase.
Options included: variable speed ec motors.
Approx dim: 39” deep x 77” wide x 41” high, awef #4.15. Rating: 38,637 btuh @ 10 degree td.
Notes: system sized for –5 degree room temp, -15 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and evaporator txv not included
- Voltage/Phase
- 3 Ph, 460 V
- Warranty
- 1 YR + 4 YR Extended
