Size: 10 HP
Features:

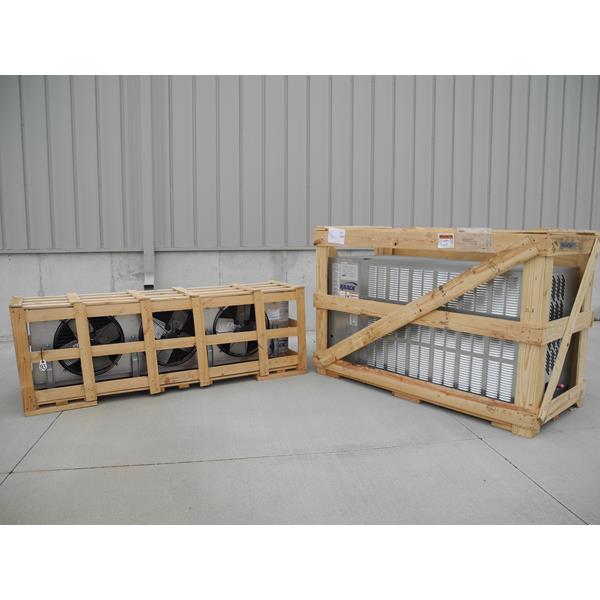

New 10 hp low temp system to include :
(1) New 10 hp Krack outdoor condensing unit with defrost timer. Unit model HDSZ-1000LRKFF-D with Copeland scroll compressor, awef #3.15.
208-230 volt, 3 phase, r-449a. Rating: 39,560 btuh @ -15 degree sst
Options included: e-3 defrost kit (timer with evaporator fan/heater contactors), suction accumulator, and replaceable core suction filter.
(1) New Krack medium profile freezer evaporator with variable speed ec motors. Model MKD36E-381-RVKK, electric defrost, 8175 cfm. 3-20” fans, 230 volt, 3 phase.
Approx dim: 19” deep x 92” wide x 27” high, awef #4.15. Rating: 38,775 btuh @ 10 degree td.
Notes: system sized for –5 degree room temp, -15 degree sst, +95 degree ambient and operation on refrigerant r-449a.
- Voltage/Phase
- 3 Ph, 208-230 V
- Warranty
- 1 YR + 4 YR Extended
