Size: 5 HP
Features:

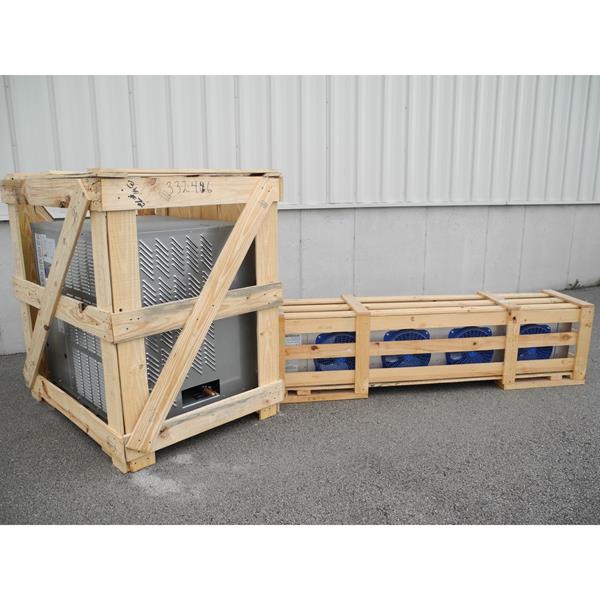

New 5 hp low temp system to include:
(1) New 5 hp Krack outdoor condensing unit. Unit model HDSZ-0500LRKBC-D with Copeland scroll compressor, awef #3.15.
208-230 volt, 3 phase, r-449a.
Options included: e-3 defrost kit (timer with evaporator fan/heater contactors), suction accumulator, and replaceable core suction filter. Rating: 18,540 btuh @ -15 degree sst
(1) New Krack low profile freezer evaporator. Model KRD46E-180RVAA, electric defrost, 3380 cfm. 4 fans, 230 volt, 1 phase.
Options included: variable speed ec motors.
Approx dim: 16” deep x 84” wide x 16” high, awef #4.15. Rating: 18,787 btuh @ 10 degree td
Notes: system sized for –5 degree room temp, -15 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and evaporator txv not included.
- Voltage/Phase
- 3 Ph, 208-230 V
- Warranty
- 1 YR + 4 YR Extended
