Size: 15 HP
Features:
New 15 hp low temp system to include below:
(1) New 15 hp Chandler mfg. outdoor condensing unit. Unit model: HCH0150LDBCDA0303 with Copeland discus compressor, awef #3.15. 460 volt, 3 phase, r-449a.
Options included: defrost timer, fan/heater contactor (high amps)
Rating: 69,890 btuh @ -15 degree sst/+95 degree ambient

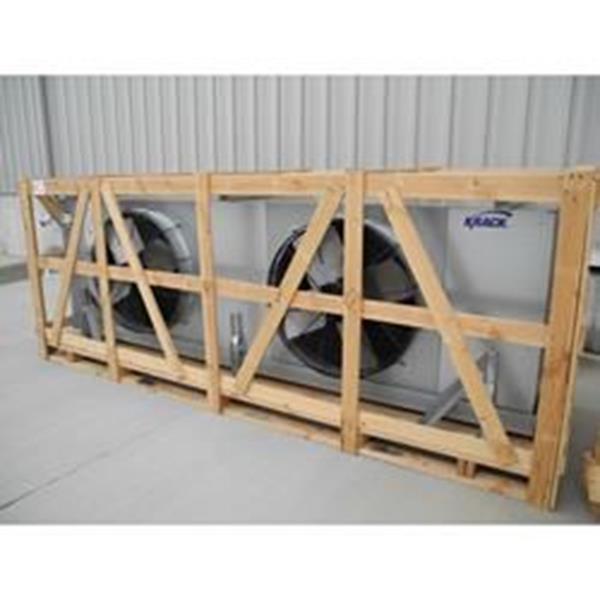

(1) New Krack mfg. high profile freezer evaporator. Model: SMD24E-759RVMM, electric defrost, 19,380 cfm. 2-30” fans, 460 volt, 3 phase.
Options included: variable speed ec motors
Approx dim: 39” deep x 135” wide x 41” high, awef #4.15 (#9.00 for cooler)
Rating: 76,375 btuh @ 10 degree td
Notes: System sized for -6 degree room temp, -15 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors and evaporator txv not included.
- Voltage/Phase
- 3 Ph, 460 V
- Warranty
- 1 YR factory
