Size: 25 HP
Features:
New 25 hp sytem to include the following:

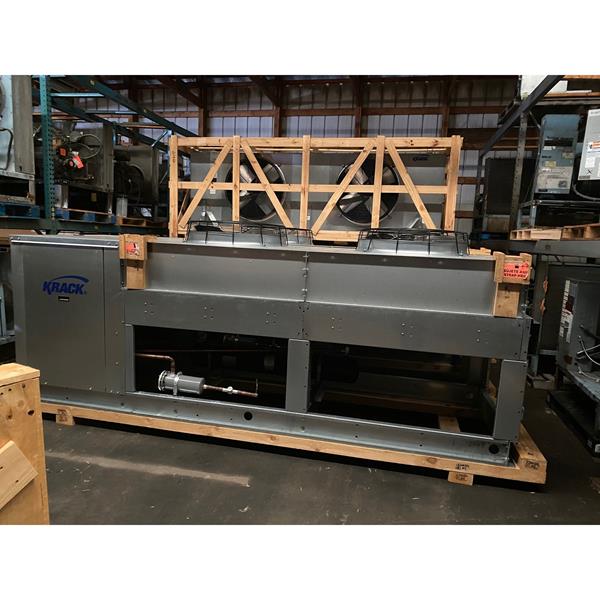

new 25 hp krack mnfg outdoor, air-cooled condensing unit.
mod: csd-0250mrm with copeland “discus” compressor, awef #7.6. 460 volt, 3 phase, r-449a. Rating: 226,100 btuh @ +30 degree sst.
(2) new krack mnfg high profile cooler evaporators with “variable speed ec” motors.
Mod: smd26a-1192-rvm, air-defrost, 16,800 cfm2-30” fans, 460 volt, 3 phase. Approx dim: 39” deep x 135” wide x 41” high, awef #9.00. Rating: 119,200 per unit @ 10 degree td
-options included: mounted defrost clock, variable speed ec evaporators motors, and txvs. Long air throw adapters included loose.
Notes: system sized for +39.5 degree room temp, +30 degree sst, +95 degree ambient and operation on refrigerant r-449a. Controls for ec motors not included.
- Voltage/Phase
- 3 Ph, 460 V
- Warranty
- 1 YR + 4 YR Extended
