New 10 HP Low Temp System, 3 Phase 208-230 Volt
New 10 HP low-temperature refrigeration system built for walk-in/drive-in freezers

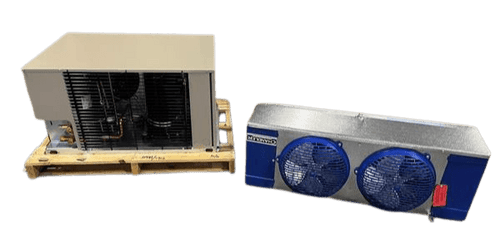

This 10 HP low-temperature refrigeration system pairs a Chandler outdoor air-cooled condensing unit with two matching low-profile electric-defrost evaporator for dependable walk-in/drive-in freezer applications. The matched system combines a Copeland Scroll compressor with variable speed evaporator motors to provide efficient, reliable cooling for low-temperature cold storage.
Condensing Unit
· 1- New 10 HP Chandler outdoor, air-cooled condensing unit.
· Unit model: HCH0100LCBCZA0300 with Copeland Scroll compressor.
· 208-230 volt, 3 phase, R-449A, AWEF #3.15.
· Approx dim: 37”D x 52”L x 40”H, net wgt: 671 Ibs.
· Options included: Electric defrost timer with fan/heater contactor.
· Rating: 36,150 BTUH @ -15° SST/+95° ambient.
Evaporator
· 2 – New Chandler low profile evaporator.
· Model: HEL0170BY6EMAB0000, electric defrost.
· 4 - 18” fans, 208/230 volt, 1 phase.
· Options included: 2-speed EC motors.
· Approx dim: 16”D x 78”L x 18”H, net wgt: 91 Ibs AWEF #4.15.
· Rating: 18,258 BTUH @ 10° T.D/R-449A.
System spec’ed for -5° freezer on R-449A.
Get it right. Call our knowledgeable US-based sales staff for assistance at (888) 661-0871.
- Phase - Voltage
- 3 phase 208-230 volt
- Description
- New 10 HP Chandler Low Temp System, 3 phase 208-230 volt
- Dimensions
- Condensing Unit: 37”D x 52”L x 40”H; Evaporator: 16”D x 78”L x 18”H
- BTUH Capacity
- Condensing Unit: 36,150 BTUH @ -15° SST/+95° ambient; Evaporator: 18,258 BTUH @ 10° T.D/R-449A
- Manufacturer
- Chandler
- Model #
- Condensing Unit: HCH0100LCBCZA0300; Evaporator: HEL0170BY6EMAB0000
- Defrost
- Electric Defrost
- Warranty
- New units include factory warranty
- Application / Temperature
- Low Temp
- Horsepower (HP)
- 10 HP
- Refrigerant Class
- A1
- Item Condition
- New
- Condensing Unit Submittal / Cut Sheet
- HCH0100LCBCZA0300.pdf
